'07 JK 3.8 Smoking

Tech topics for the JK (2-door & 4-door) models manufactured from 2007 to Present.
jayhawkclint
Posts: 301
Joined: Wed Jan 13, 2010 6:04 am
First Name: Clint
Last Name: Turner
Jeep Year: 1970
Jeep Model: CJ-5 (1954-1983)
Location: Moore

'07 JK 3.8 Smoking

Postby jayhawkclint » Sun Dec 01, 2013 1:39 pm

Noticed the other the day the coolant was low. Weird. This morning all of a sudden she is puffing the white smoke. 7rs and 99k miles, first major driveline failure. Soooo tempted to fix the head gasket with a V8.
1970 CJ5
Shrek
Posts: 392
Joined: Thu Jan 12, 2012 6:39 pm
First Name: Danny
Last Name: Hubers
Jeep Year: 2012
Jeep Model: JK (2007–2019 Wrangler)
Location: noble

Re: '07 JK 3.8 Smoking

Postby Shrek » Sun Dec 01, 2013 2:45 pm

Time for a LS.
2012 jku Rubicon, 3.5 metal cloak game changer lift, evo skids, 35" nitto trail grapplers.
jayhawkclint
Posts: 301
Joined: Wed Jan 13, 2010 6:04 am
First Name: Clint
Last Name: Turner
Jeep Year: 1970
Jeep Model: CJ-5 (1954-1983)
Location: Moore

'07 JK 3.8 Smoking

Postby jayhawkclint » Fri Dec 06, 2013 1:31 pm

Ordered gaskets. I have decided that if I tear it down and find any cracks in the heads, it's getting a V8.
1970 CJ5
fatty
BOD
Posts: 2171
Joined: Mon Dec 14, 2009 4:27 pm
First Name: Greg
Last Name: AKA Fatty
Jeep Year: 2004
Jeep Model: TJ (1997–2006 Wrangler)

Re: '07 JK 3.8 Smoking

Postby fatty » Sat Dec 07, 2013 4:20 am

jayhawkclint wrote:Ordered gaskets. I have decided that if I tear it down and find any cracks in the heads, it's getting a V8.


Not sure why but I find myself quietly chanting "crack, crack, crack" :mrgreen: at my computer this morning. Hope it has them if you want them otherwise I hope it is an easy fix.
2004 Columbia Edition TJ with 4" lift, Metal Cloak fenders, TF belly up, Superwinch 9grand, 37 PBR's, RJ 60 w/ discs, PR 44 5.13's, Atlas 4.3, ARB front/rear. Sarcastic Driver! Silver Jeep Club Member 1
Bugeater
BOD
Posts: 426
Joined: Thu Oct 13, 2011 9:25 pm
First Name: Tim
Last Name: Jorgensen
Jeep Year: 2007
Jeep Model: JK (2007–2019 Wrangler)

Re: '07 JK 3.8 Smoking

Postby Bugeater » Mon Dec 09, 2013 10:02 pm

I ran across this and thought of you Clint. Not trying to talk you out of a V8 though…just an option.

http://www.jkowners.com/forum/showthread.php?t=75054
SJC3
jayhawkclint
Posts: 301
Joined: Wed Jan 13, 2010 6:04 am
First Name: Clint
Last Name: Turner
Jeep Year: 1970
Jeep Model: CJ-5 (1954-1983)
Location: Moore

Re: '07 JK 3.8 Smoking

Postby jayhawkclint » Sat Dec 14, 2013 2:53 pm

Gasket kit came in yesterday. Got the Jeep and tool box positioned in the garage. My little propane heater was just not cutting it on this 27deg morning. Trying to get some motivation. So, in the meantime, looking at V8 swaps in the ol' internets. Shrek is right, LS is the way to go. I have come to a tough crossroads here. I think it is time to buy the wife a new car. The JK is at the point where stuff is going to start needing work. I think it's time to sell the CJ and move on to making the JK my main Jeep. Doubt I can get what the old JEEP is worth to me sentimentally, but it just doesn't fit in with my family anymore. I think I'm going to put gaskets in the 3.8 to get it driveable again, give the CJ a once over to fix some of the more glaring issues (don't think lap belts are a big selling feature nowadays), then use the sale money of the CJ to fund an LS swap into the JK.
1970 CJ5
jayhawkclint
Posts: 301
Joined: Wed Jan 13, 2010 6:04 am
First Name: Clint
Last Name: Turner
Jeep Year: 1970
Jeep Model: CJ-5 (1954-1983)
Location: Moore

Re: '07 JK 3.8 Smoking

Postby jayhawkclint » Sat Dec 14, 2013 4:29 pm

This is the fitting going to the fuel rail. Has anyone worked on this style of high pressure fuel connector? Can't figure out the trick to get it undone. The releases are inside the connector:
1970 CJ5
rlpetty43
Posts: 550
Joined: Wed Mar 23, 2011 6:51 pm
First Name: Roman
Last Name: Petty
Jeep Year: 1991
Jeep Model: XJ (1984–2001 Wagoneer/Cherokee)

Re: '07 JK 3.8 Smoking

Postby rlpetty43 » Sat Dec 14, 2013 6:15 pm

I worked on a ram truck that has something kinda like that, autozone had little kit that had various size tools that fit over the line that push into the fitting as one pull the line it was kinda a pain.
91 XJ 5sp 35x12.5 KM2, 4.5" lift, custom bumpers, warn vr8000, 4.88 G2 gears and iron rock truss ford 8.8 rear 31 spline, trussed hp dana 30 with wj knuckle swap and eaton elocker.
"amateur radio call sign AC5XJ"
jayhawkclint
Posts: 301
Joined: Wed Jan 13, 2010 6:04 am
First Name: Clint
Last Name: Turner
Jeep Year: 1970
Jeep Model: CJ-5 (1954-1983)
Location: Moore

Re: '07 JK 3.8 Smoking

Postby jayhawkclint » Sat Dec 14, 2013 11:28 pm

1970 CJ5
jayhawkclint
Posts: 301
Joined: Wed Jan 13, 2010 6:04 am
First Name: Clint
Last Name: Turner
Jeep Year: 1970
Jeep Model: CJ-5 (1954-1983)
Location: Moore

'07 JK 3.8 Smoking

Postby jayhawkclint » Sun Dec 15, 2013 7:33 pm

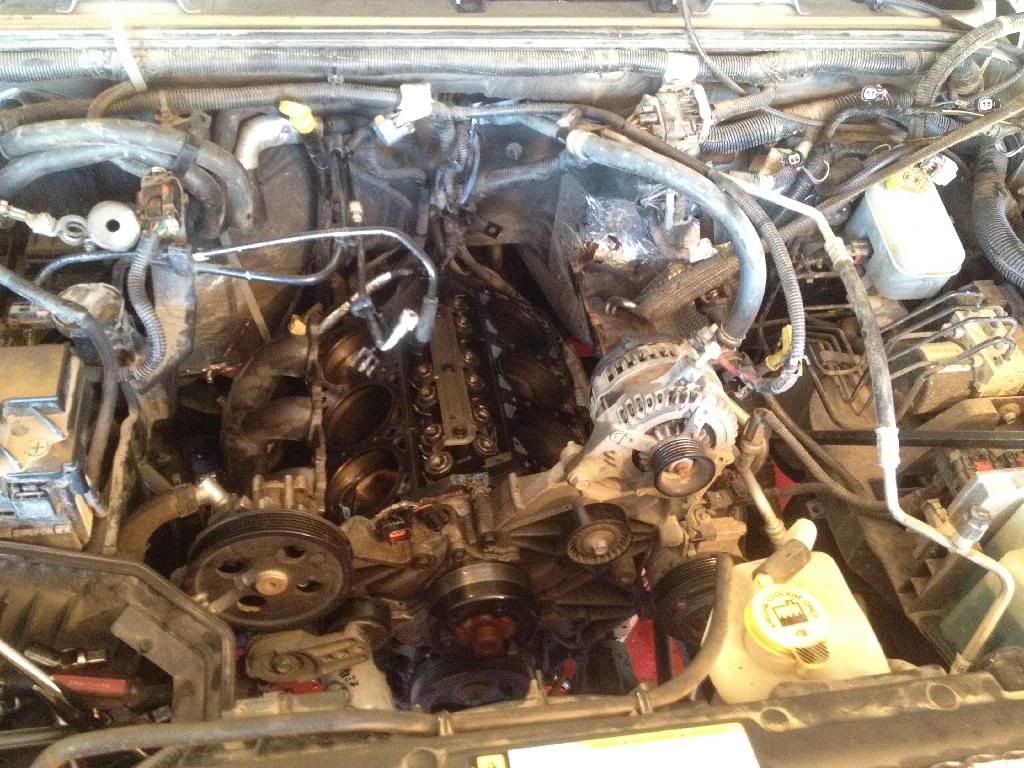

Got the heads off this afternoon. Don't see any obvious evidence of a gap in the gasket between the cylinders. Driver's side pistons show a little more crud than pass side. Sending the heads in for a resurfacing; the valve train looks almost new. There is a carbon ridge at top of the cylinders, but it wipes off easily and no felt ridge underneath.
1970 CJ5
